| Sum: | Checksum |
| Copy: | How the image was created. D=direct (e.g. from EPROM programmer) C=computer (using computer [e.g. DEBUG software]) |
| Source: | Person at the VCF (or at phantom.sannata.ru) who supplied the image. Note that the supplier isn't necessarily the same person who created the image. |
| Make | Model | Function | Year | Version | Socket | Data Type | Sum | Chip Type | Size | Copy | Source | Link | Description/Comment |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ??? | AVGA1-A11 | 16-bit VGA card | '90 | B | U5 | BIOS | 44C6DE | [27256] | 32 KB | D | alecv | Download | First half has even bytes; second half has odd bytes. Click here to see the bytes rearrranged. |
| ??? | FA-100 | 8-bit floppy controller | '88 | 1.0 | U5 | BIOS | 00 | M2764A | 8 KB | D | Robin4 | Download | Contains strings "FAX-100" and "Bios Ver. 1.0 (June/15/1988)". "FA-100" on ROM sticker. |
| ??? | PE-510D | 8-bit floppy controller | ? | ? | U4 | BIOS | 00 | HN482764G-4 | 8 KB | D | modem7 | Download | Contains strings "PE-510B-N" and "PE-510C-EXT" |
| ??? | SSI-011SF | 16-bit SCSI controller | '90 | 6.02 | U3 | BIOS | FF | [2764] | 8 KB | D | alecv | Download | Appears to be a clone of a Future Domain TMC-950. See note 4. |
| ??? | VTI-XTB | 8-bit IDE-XT controller | '88 | 1.7 | U3 | BIOS | 00 | 27C64A-20 | 8 KB | D | SunDown79 | Download | Card possibly made by 'V & V System'. |
| Abell C&C Corp. | EN-100-1 | 8-bit network card | '89 | V1.2e | U15 | Boot | 17C400 | [2764] | 8 KB | D | alecv | Download | NE-1000 compatible card. IPX boot ROM. |
| Ably-Tech Corp. | Unique FDC | 8-bit floppy controller | '90 | 4.2 | U2 | BIOS | 00 | HN4827128G-25 | 16 KB | D | modem7 | Download | 8 KB sized code repeated twice. Contains "FDC-344 UNIQUE FDC Firmware Version 4.2" |
| Acculogic | SIDE-1/16 | 8-bit IDE-XT controller | D | ? | Download | Pointer to ibm-pc.org | |||||||
| Adaptec | ACB-2070A | 8-bit RLL controller | '85 | 17A 7C |
1. BIOS 2. Firmware |
00 7E |
[2764] [2764] |
8 KB 8 KB |
D D |
modem7 modem7 |
Download Download |
"BIOS 401402-00 A 0 1985" on 17A ROM sticker. "401401-00 C 0 1985" on 7C ROM sticker. |
|
| Adaptec | ACB-2072 | 8-bit RLL controller | '87 | U11 | BIOS | 00 | [2764] | 8 KB | C | TMA-1 | Download |
"408100 H, BIOS (C) 1987, 411503-00A" on U11 ROM sticker. |
|
| Adaptec | ACB-2322D | 16-bit ESDI controller | '90 | U11 U14 |
1. BIOS 2. Microcode |
0300 08BE |
NMC27C128Q-200 D27C128 |
16 KB 16 KB |
D D |
modem7 modem7 |
Download Download |
"439201-00 D BIOS 0300" on U11 ROM sticker. "437302-00 C MCODE 08BE" on U14 ROM sticker. |
|
| Adaptec | AHA-1542C | 16-bit SCSI controller | '93 | U15 U5 |
1. BIOS 2. Microcode |
144C A3C2 |
NM27C256Q-150 NM27C256Q-150 |
32 KB 32 KB |
D D |
modem7 modem7 |
Download Download |
"534201-00 D BIOS 144C" on U15 ROM sticker. "144C" bit is checksum. See note 6. "534001-00 D MCODE A3C2" on U5 ROM sticker. "A3C2" bit is checksum. |
|
| Adaptec | AHA-1542CP | 16-bit SCSI controller | '95 | U7 U12 |
1. BIOS 2. Microcode |
A91E 17C9 |
[27256] [27256] |
32 KB 32 KB |
D D |
modem7 modem7 |
Download Download |
"908501-00 D BIOS A91E" on U7 ROM sticker. "A91E" bit is checksum. See note 2. "908301-00 F MCODE 17C9" on U12 ROM sticker. "17C9" bit is checksum. |
|
| Adaptec | AVA-1515 | 16-bit SCSI controller | '93 | 1.20L | U5 | BIOS | 4700 | [27C128] | 16 KB | D | alecv | Download | Based on the AIC-6360 chip. "585201-00 A BIOS 4700" on U5 ROM sticker. "4700" bit is 16-bit checksum. |
| Aquarius Systems | AVGA-1DC | 16-bit VGA card | '91 | ? | U23 | BIOS | 00 | [27256] | 32 KB | C | Krille | Download | |
| AST | AST-3G | 8-bit EGA card | '85 | V2.015 | U29 | BIOS | 00 | DQ27128 | 16 KB | D | modem7 | Download | Contains string "Copyright 1985 AST Research, Inc. V2.015" |
| AT&T | PC 6300 | [ use ROMs for Olivetti M24 ] | [ use ROMs for Olivetti M24 ] | ||||||||||

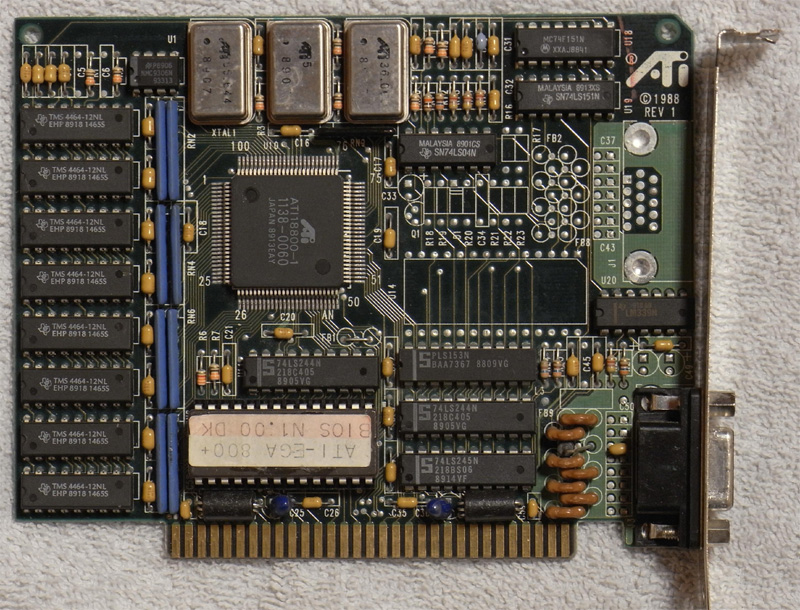

| ATI | EGA Wonder 800+ | 8-bit EGA card | '89 | N1.00 | BIOS | 00 | 27C256-20 | 32 KB | ? | per | Download | ||
| ATI | Mach64 ISA | 16-bit VGA card | '96 | 112-28124-102 112-28125-102 |
U1 U71 |
BIOS BIOS |
18F622 1885DE |
[27128] [27128] |
16 KB 16 KB |
D D |
per per |
Download | Combined contents includes "ATI MACH64, ISA BIOS P/N 112-28124-102" |
| ATI | VGA Wonder+ | 16-bit VGA card | '90 | V1M-1.03/70 | U11 U12 |
BIOS BIOS |
2ABB18 2A0AE8 |
SEEC 27C256-20 SEEC 27C256-20 |
32 KB 32 KB |
D D |
Robin4 Robin4 |
Download Download |

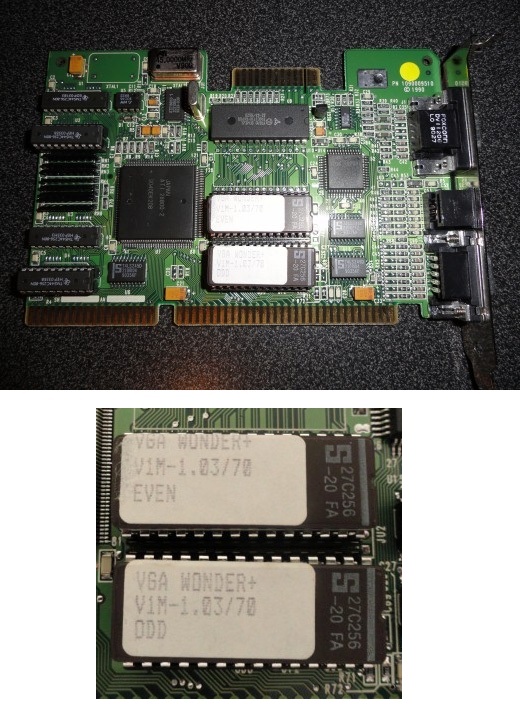

"VGA WONDER+ V1M-1.03/70 EVEN" on U11 ROM sticker "VGA WONDER+ V1M-1.03/70 ODD" on U12 ROM sticker |
| ATI | VGA Wonder XL | 16-bit VGA card | '91 | 11201122020 | U16 U17 |
BIOS BIOS |
2F20C6 2F453A |
27C256-15 27C256-15 |
32 KB 32 KB |
D D |
MikeS MikeS |
Download Download |
"Even: 11201122020 (c) 1991" on U16 ROM sticker "Odd : 11211122020 (c) 1991" on U17 ROM sticker |
| ATI | VGA Wonder XL24 | 16-bit VGA card | '92 | 112-14318-102 | U16 U17 |
BIOS BIOS |
2FD86D 2FAE93 |
[27256] [27256] |
32 KB 32 KB |
D D |
per per |
Download Download |
"112-14318-102 EVEN" and "VGA WONDER XL24" on ROM sticker "112-14319-102 ODD" and "VGA WONDER XL24" on ROM sticker |
| BusLogic | BT-545S | 16-bit SCSI controller | '92 | 4.5 3.31 |
U15 U2 |
1. BIOS 2. Firmware |
00 00 |
[27128] [27256] |
16 KB 32 KB |
D D |
modem7 modem7 |
Download Download |
"5002026-4.50" on U15 ROM sticker. Under EPROM, PCB has "27128" on it. "5002005-3.31" on U2 ROM sticker. Under EPROM, PCB has "27256" on it. |
| Columbia Data Products |
MPC 1600-1 | IBM PC clone | '83 | 4.34 | U45 U46 U47 |
BIOS BIOS BIOS |
063392 073CCD 071233 |
M2732AF M2732AF M2732AF |
4 KB 4 KB 4 KB |
D D D |
SomeGuy SomeGuy SomeGuy |
Download Download Download |
"MPC4.34 U45" on U45 ROM sticker "MPC4.34 U46" on U46 ROM sticker "MPC4.34 U47" on U47 ROM sticker |
| Commodore | PC10-III | IBM PC clone | '90 | 4.41 | ? | BIOS | 00 | [27256] | 32 KB | ? | archeocomp | Download | Many Commodore ROM images at http://mhv.bplaced.net/cbmroms/cbmroms.php |
| Compaq | Portable Plus | IBM PC clone | '83 | C | U40 U47 |
BIOS BIOS |
0EA8AC 0EA8AC |
[2764] [2764] |
8 KB 8 KB |
D D |
SomeGuy SomeGuy |
Download | Both ROMs have the same contents |
| Compaq | Deskpro 386 | Download | Pointer to bitsavers | ||||||||||
| Conion Electronics | PC8008F | 8-bit SCSI controller | '93 | 8.2 | U1 | BIOS | 00 | NMC27C64Q | 8 KB | D | alecv | Download | Appears to be a clone of a Future Domain TMC-850M. Uses same ROM. |
| D-Link | DE-150 | 8-bit network card | '88 | 2.10 | U1 | Boot | 00 | D2764A | 8 KB | D | alecv | Download | Contains "D-Link DE-150 Ethernet BootROM Driver V2.10" |
| DTC | 5150BX | 8-bit MFM controller | '85 | BXD06 | 7E | BIOS | 00 | [2764] | 8 KB | D | modem7 | Download | |
| DTC | 5150CX | 8-bit MFM controller | '86 | BXD07 | 3F | BIOS | 00 | [2764] | 8 KB | D | modem7 | Download | |
| DTC | 5150CRH | 8-bit MFM controller | '87 | CXD03A | 6B | BIOS | 00 | [2764] | 8 KB | D | modem7 | Download | |
| DTC | " | " | '88 | CXD04A | " | " | 00 | [2764] | 8 KB | D | alecv | Download | (photo) |
| DTC | 5150X | 8-bit MFM controller | '88 | CXD21A | 6B | BIOS | 00 | [2764] | 8 KB | D | modem7 | Download | |
| DTC | " | " | " | CXD23A | " | " | 00 | [2764] | 8 KB | D | modem7 | Download | |
| DTC | 5160X | 8-bit RLL controller | '88 | CRD18A | 6B | BIOS | 00 | [2764] | 8 KB | D | modem7 | Download | |
| DTC | 7287 | 16-bit RLL controller | '88 | CRN15A | 11B | BIOS | 00 | NMC27C128Q-200 | 16 KB | D | modem7 | Download | |
| DTK | PII-151B | 8-bit floppy controller | '86 | 1.06B | K2 | BIOS | 00 | M2764A | 8 KB | ? | Robin4 | Download | Contains "DTK FDC DRIVER BIOS (C) COPYRIGHT 1986" and "Ver. 1.06B" |
| Eagle Computer |
1600 model 1630 |
IBM PC clone | '84 | 2.2 | |
BIOS BIOS |
077AC4 071907 |
[2732] [2732] |
4 KB 4 KB |
D D |
SomeGuy SomeGuy |
Download | Even ROM. On ROM sticker is "62-2732-001, Rev E U403". Odd ROM. On ROM sticker is "62-2732-002, Rev E U404" |
| Eagle Computer |
PC Spirit | IBM PC clone | '83 | 1.9 | C ?? A ?? |
BIOS BIOS |
00 00 |
[2764-30] [2764-30] |
8 KB 8 KB |
D D |
TMA-1 TMA-1 |
Download | On ROM sticker is "62-2764-003, Rev C U1101". Content includes "EPROM VER 1.9" On ROM sticker is "62-2764-004, Rev A U1103" |
| Everex | EV-391 | 8-bit MFM controller | '84 | 3.92 | U14 | BIOS | 00 | [2764] | 8 KB | D | modem7 | Download | Card design licenced from WD, or WD made the card - click here |
| Everex | EV-346 | 16-bit MFM controller | '88 | 3.2 | U6 | ? | 136DF3 | [2764] | 8 KB | D | modem7 | Download | On ROM sticker is "346-6 VER 3.2" |
| Future Domain | TMC-830M | 8-bit SCSI controller | U4 | BIOS | 00 | [2764] | 8 KB | See note 9. | |||||
| Future Domain | TMC-850M | 8-bit SCSI controller | '90 | 7.0 | U2 | BIOS | 00 | [2764] | 8 KB | D | evris80 | Download | Contains "SCSI ROM BIOS 950 AT V7.0" and "(C) 1986-1990 V7.0 09/18/90" |
| Future Domain | " | " | '93 | 8.2 | U2 | BIOS | 00 | [2764] | 8 KB | ? | Robin4 | Download | Contains "Future Domain 950 SCSI ROM BIOS v8.2" and "TMC-950 (C) 1993 V8.2 03/12/93" |
| Future Domain | " | " | '93 | 8.5 | U2 | BIOS | 00 | [2764] | 8 KB | ? | per | Download | Contains "SCSI ROM BIOS for 9C50/950 v8.5" and "V1.00 08/18/93" |

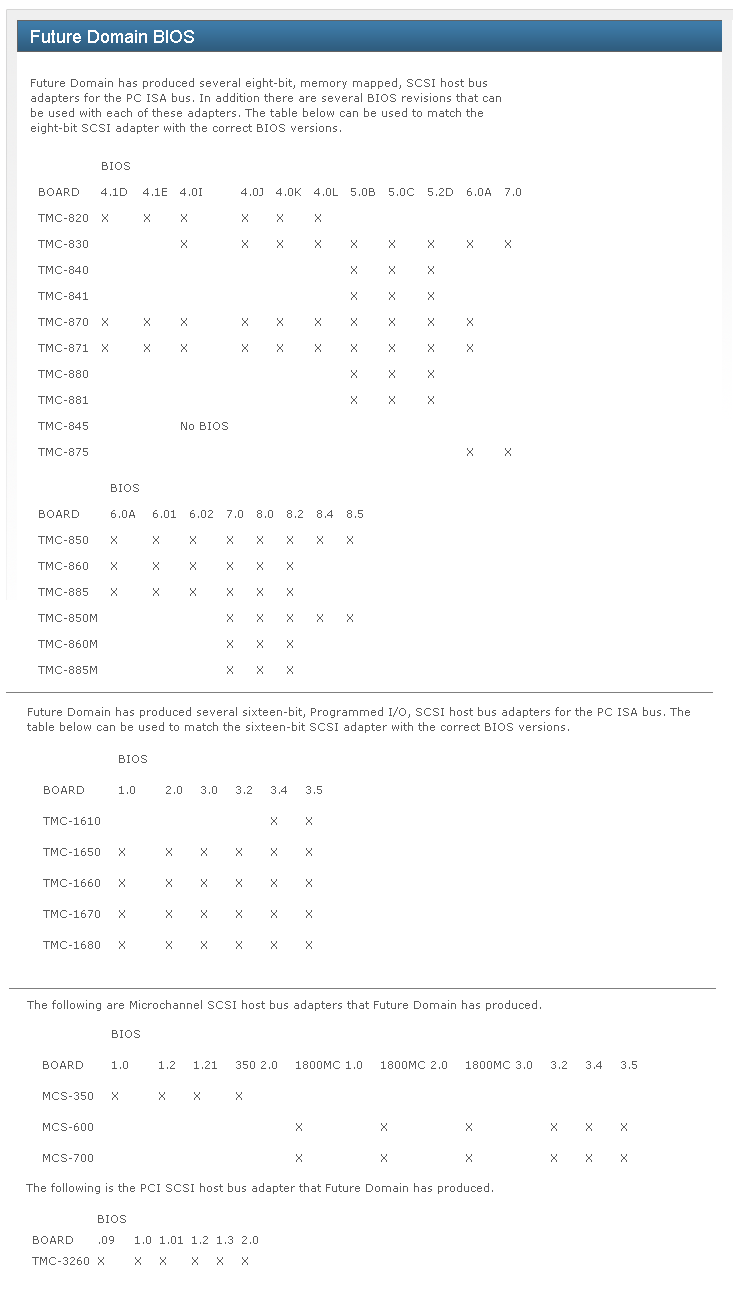

| Future Domain | TMC-860M | 8-bit SCSI controller | BIOS | See note 10. | |||||||||
| Future Domain | TMC-885M | 8-bit SCSI controller | BIOS | See note 10. | |||||||||
| Future Domain | TMC-950 | [ use ROM for TMC-850 ] | [ use ROM for TMC-850 ] | ||||||||||
| IBM | Music Feature Card |
D | ? | Download | Pointer to ibm-pc.org | ||||||||
| IBM | ??? | 8-bit network card (token ring - 16/4 Mbps) |
'88 | ? | U5 U6 |
? ? |
6882D0 5E5E3A |
[27256] D27256-25 |
32 KB 32 KB |
D D |
modem7 modem7 |
Download Download |
25F9443 / ODD byte 25F9444 / EVEN byte |
| IBM | MDA/CGA | Display adapters | ? | ? | ? | Font | 06DDC0 | [MK36000] | 8 KB | C | modem7 | Download | IBM part number on chip is 5788005 |
| IBM | EGA | Display adapter | '84 | ? | U44 | BIOS | 00 | [27128] | 16 KB | D | modem7 | Download | IBM part number on chip is 6277356. See note 1. |
| IBM | PGA (PGC) | Display adapter | '84 | ? | U43/U44 | ? ? |
00 00 |
[27256] [27256] |
32 KB 32 KB |
D D |
per per |
Download Download |
IBM part number on chip is 6137322 IBM part number on chip is 6137323 |
| IBM | VGA | Display adapter | '86 | ? | ? | BIOS | 00 | [27256] | 32 KB | C | Great Hierophant | Download | First 8 KB unused |
| IBM (Xebec) | [variation #1] | 8-bit MFM controller | '82 ? |
12J 9A |
1. BIOS 2. ???? |
00 70 |
[MK36000] [2732] |
8 KB 4 KB |
C D |
modem7 modem7 |
Download Download |
1. IBM part number on chip is 5000059 (same as 6359121 chip on later version of card). 2. This chip has "104648D" on it. |
|
| IBM (Xebec) | [variation #2] | 8-bit MFM controller | '82 ? |
12D 12A |
1. BIOS 2. ???? |
00 DA |
[MK36000] AM2732DC |
8 KB 4 KB |
C D |
modem7 modem7 |
Download Download |
1. IBM part number on chip is 6359121 (same as 5000059 chip on earlier version of card). 2. On ROM sticker is "104839E". |
|
| IBM (Xebec) | [variation #3] | 8-bit MFM controller | '85 '86 |
12D 12A |
1. BIOS 2. ???? |
00 DA |
[MK36000] AM2732DC |
8 KB 4 KB |
C D |
modem7 modem7 |
Download Download |
1. IBM part number on chip is 62X0822. 2. On ROM sticker is "104839RE COPYRIGHT XEBEC 1986" (same as 104839E chip on earlier version of card). |
|
| IBM | 4860 (PCjr) | Desktop computer | '83 | 01JUN83 | XX1 ZM63 |
BIOS/BASIC | 33D400 3A9C00 |
MK38050N-25 MK38051N-25 |
32 KB 32 KB |
C C |
mbbrutman mbbrutman |
Download Download |
IBM part number on chip is 1504036 IBM part number on chip is 1504037 |
| IBM | 5140 | Laptop computer | '85 | 13SEP85 | ? ? |
BIOS/BASIC BIOS/BASIC |
3B7F00 32FD00 |
[27C256] [27C256] |
32 KB 32 KB |
? ? |
per per |
Download Download |
2 ROMs each carrying part of the overall code/data. Combined 8-bit checksums = 00 |
| IBM | 5150 | Desktop computer | '81 | 04/24/81 | U33 | BIOS | 0E8600 | [MK36000] | 8 KB | ? | ? | Download | MD5: 6338A9808445DE12109A2389B71EE2EB |
| IBM | " | " | '81 | 10/19/81 | U33 | BIOS | 0E8600 | [MK36000] | 8 KB | C | modem7 | Download | MD5: 6A1ED4E3F500D785A01FF4D3E000D79C |
| IBM | " | " | '82 | 10/27/82 | U33 | BIOS | 0EB000 | [MK36000] | 8 KB | C | modem7 | Download | |
| IBM | 5152 | Printer | ? | ? | 1B | Font ? | 044484 | [2332] | 4 KB | D | modem7 | Download | Actual 5152, not an Epson MX-80. |
| IBM | 5155 | Desktop computer | Uses a 5160 motherboard (the one with 11/08/82 BIOS) | ||||||||||
| IBM | 5160 | Desktop computer | '82 | 08/16/82 | U18 U19 |
BIOS/BASIC BIOS/BASIC |
3B5100 0E2E00 |
[MK38022P-25] [MK37050N-4] |
32 KB 8 KB |
C C |
MicroCoreLabs MicroCoreLabs |
Download | MD5: C25BF18A021F7C5FD17F2C3968590C51 MD5: 69E2BD1D08C893CBF841607C8749D5BD |
| IBM | " | " | '82 | 11/08/82 | U18 U19 |
BIOS/BASIC BIOS/BASIC |
3B5100 0E2E00 |
[MK38036N-25] [MK37050N-4] |
32 KB 8 KB |
C C |
modem7 modem7 |
Download | MD5: 1A2AC1AE0FE0F7783197E78DA8B3126C MD5: 69E2BD1D08C893CBF841607C8749D5BD |
| IBM | " | " | '86 | 01/10/86 | U18 U19 |
BIOS/BASIC BIOS/BASIC |
4043BE 50BE42 |
[27256] [27256] |
32 KB 32 KB |
D D |
modem7 modem7 |
Download | 2 ROMs each carrying part of the overall code/data. Combined 8-bit checksums = 00 |
| IBM | " | " | '86 | 05/09/86 | U18 U19 |
BIOS/BASIC BIOS/BASIC |
403619 50B5E7 |
[27256] [27256] |
32 KB 32 KB |
D D |
modem7 modem7 |
Download | 2 ROMs each carrying part of the overall code/data. Combined 8-bit checksums = 00 |
| IBM | 5162 | Desktop computer | '86 | 04/21/86 | U34 U35 |
BIOS/BASIC BIOS/BASIC |
3888C5 38E73B |
[27256] [27256] |
32 KB 32 KB |
C C |
ag ag |
Download | 2 ROMs each carrying part of the overall code/data. Combined 8-bit checksums = 00 |
| IBM | " | " | '83 | ? | U37 | [has ROM] | 027403 | 8042 or 8742 | 2 KB | Download | Keyboard controller chip on motherboard. IBM part number 1503033; same as corresponding chip on IBM 5170. | ||
| IBM | 5170 | Desktop computer | '84 | 01/10/84 | U27 U47 |
BIOS/BASIC BIOS/BASIC |
394236 3A13CA |
[27256] [27256] |
32 KB 32 KB |
D D |
modem7 modem7 |
Download | 2 ROMs each carrying part of the overall code/data. Combined 8-bit checksums = 00 |
| IBM | " | " | '85 | 06/10/85 | U27 U47 |
BIOS/BASIC BIOS/BASIC |
392971 39738F |
[27256] [27256] |
32 KB 32 KB |
D D |
modem7 modem7 |
Download | 2 ROMs each carrying part of the overall code/data. Combined 8-bit checksums = 00 |
| IBM | " | " | '85 | 11/15/85#1 | U27 U47 |
BIOS/BASIC BIOS/BASIC |
38A604 38D8FC |
[27256] [27256] |
32 KB 32 KB |
D D |
modem7 modem7 |
Download | 2 ROMs each carrying part of the overall code/data. Combined 8-bit checksums = 00 |
| IBM | " | " | '85 | 11/15/85#2 | U27 U47 |
BIOS/BASIC BIOS/BASIC |
38A610 38D8F0 |
[27256] [27256] |
32 KB 32 KB |
D D |
modem7 modem7 |
Download | 2 ROMs each carrying part of the overall code/data. Combined 8-bit checksums = 00 |
| IBM | " | " | '83 | ? | U126 | [has ROM] | 027403 | 8042 or 8742 | 2 KB | D | per | Download | Keyboard controller chip on all three types of 5170 motherboard. IBM part number 1503033 |
| IBM | 5273 | Desktop computer | '85 | U27 U47 |
BIOS/BASIC BIOS/BASIC |
ChrisCwmbran | U27 = 6448896, U47 = 6448897. Same as "11/15/85#2" ROMs for IBM 5170. | ||||||
| InterLan | NP600A-3 | 16-bit network card | |
BA | U38 U39 |
? ? |
0ABEAC 0AA852 |
[2764] [2764] |
8 KB 8 KB |
D D |
modem7 modem7 |
Download Download |
Low byte. "258-0032-00 REV BA" on U38 ROM sticker. High byte. "258-0033-00 REV BA" on U39 ROM sticker. |
| Iomega | Floptical | 8-bit SCSI controller | '92 | V1.0 | U3 | BIOS | 1200 | [27256] | 32 KB | D | Darko | Download | Card for an Iomega floptical drive. "V1.0 01836200" on ROM. BIOS based on Rancho RTBios V-I1.00 BIOS |
| ITT | XTRA | Desktop computer (XT clone) |
'85 | 2.00 | U93 U92 |
BIOS BIOS/DIAGS |
00 00 |
[27128] [27128] |
16 KB 16 KB |
D D |
SpidersWeb SpidersWeb |
Download | |
| Jameco | JE1043 | 8-bit floppy controller | '86 | C1 | U26 | BIOS | 06F100 | [2764] | 8 KB | D | Robin4 | Download | This is a relabeled Longshine LCS-6610F. On ROM is "E6610" and "C1". |
| Jameco | " | " | '86 | ? | U26 | BIOS | 06F800 | [2764] | 8 KB | ? | Chuck(G) | Download | This is a relabeled Longshine LCS-6610F |
| Juko | D16X | 8-bit IDE-AT controller | '91 | 1.2 | U5 | BIOS | 6A8113 | [27256] | 32 KB | C | Maxheap | Download | Only 8KB of code. Contains "VERSION 1.2 Copyright 1990, 1991 JUKO" |
| Kaypro | 2000 | Laptop computer | '85 | j.08X | ? | BIOS | 00 | [2764] | 8 KB | ? | SomeGuy | Download | Contains strings "ROM BIOS FOR KAYPRO 2000 - Ver j.08X" and "ROM BIOS Ver 1.08" !!! |
| Key Tronic | 101WN63S-36E | XT/AT switchable keyboard | '95 | ? | 3 | ? | 040420 | P8049AH | 2 KB | D | modem7 | Download | |
| Key Tronic | KB3270/PC | 3270 keyboard for PC/XT/AT | ? | ? | ? | ? | 05395B | ? | 8 KB | ? | per | Download | Second half is empty |
| Konan | KDC-230 | 8-bit MFM controller | '86 '85 |
PHX150G PHX110B1 |
U17 U11 |
1. BIOS 2. ???? |
0C2600 0C2376 |
MMC27C64Q [2764] |
8 KB 8 KB |
D D |
modem7 modem7 |
Download Download |
On ROM sticker is "KONAN KDC230 PHX150G" On ROM sticker is "PHX110B1" |
| Kouwell | KW-530D | 8-bit floppy controller | '87 | ? | U10 | BIOS | 0B6700 | [2764] | 8 KB | D | Robin4 | Download | BIOS by Joincom Electronic Corp. |
| Kouwell | " | " | '86 | 1.01 | U10 | BIOS | 048800 | [2764] | 8 KB | C | alecv | Download | BIOS by DTK |
| Laser | [ see VTech ] | [ see VTech ] | |||||||||||
| Lestina ? | ??? | 16-bit VGA card | '91 | B | ? | BIOS | 44C6DE | [27256] | 32 KB | D | prime | Download | First half has even bytes; second half has odd bytes. Click here to see the bytes rearrranged. |
| Longshine | LCS-6210C REV:G | 8-bit MFM controller | U30 | BIOS | 00 | M5L2764K | 8 KB | D | modem7 | Download | On ROM sticker is "85005 73B" | ||
| Longshine | LCS-6210D REV:A1 | 8-bit MFM controller | '88 | I2 | U14 | BIOS | 00 | [2764] | 8 KB | D | modem7 | Download | Strings within: "LCS6210D ASIC I2.1 09/01/1988" and "Version I2" / On ROM sticker is "E6210 I2" |
| Longshine | LCS-6210D REV:E | 8-bit MFM controller | '88 | G7 | U27 | BIOS | 00 | [2764] | 8 KB | D | modem7 | Download | Strings within: "LCS6210C G7.0 05/09/1988" and "Version G7" / On ROM sticker is "E6210 G7" |
| Longshine | LCS-6220 (old) | 8-bit MFM controller | '86 | F0 | U23 | BIOS | 00 | D2764D | 8 KB | D | modem7 | Download | Old version of LCS-6220 (long card) / On ROM sticker is "E6220 F0" |
| Longshine | LCS-6220 REV:A3N | 8-bit MFM controller | '89 | U6 | U24 | BIOS | 00 | [2764] | 8 KB | D | modem7 | Download | A string within: "LCS6610F REV:U6" / On ROM sticker is "E6610 U6" |
| Longshine | LCS-6610F REV:B | 8-bit floppy controller | '86 | B | U26 | BIOS | 00 | TMS2764-20JL | 8 KB | D | Robin4 | Download | A string within: "COPYRIGHT (C) 9,1986 BY LONG SHINE ELECTRONIC CO" / On ROM sticker is "E6610 B" |
| Longshine | LCS-6821N REV:B2 | 8-bit SCSI controller | '90 | 1.04 | U2 | BIOS | 00 | S27C64A-20 | 8 KB | D | alecv | Download | Contains: "LCS-6821N SCSI Adapter ROM BIOS version 1.04" / Does not support HDDs larger than 512 MB |
| Midiman | MM-401 | 8-bit MIDI interface | '93 | 1.15 | U5 | ? | 10C2D7 | TMS-27C64-25JL | 8 KB | D | Robin4 | Download | Contains strings "Copyright 1991-1993" and "ROM Version 1.15" |
| NCL | NDC5127 | 8-bit MFM controller | '85 | CN-17-01 ? | E4 E2 |
1. BIOS 2. Microcode |
00 14C4E8 |
M5L2764K M5L2764K |
8 KB 8 KB |
D D |
modem7 modem7 |
Download Download |
On ROM sticker: "NCL 5027 CN-17-01" On ROM sticker: "NCL 5127 01-01-04" |
| Novell | Disk Coprocessor | Special HDD controller | '86 | 817-186-001 Rev E |
U3.2 | ? | 085800 | 2764-25JL | 8 KB | D | modem7 | Download | Under EPROM, PCB has "2764 or 27128" on it |
| NSI Logic | Smart EGA Plus | 8-bit EGA card | '87 | 1.45 | U21 | BIOS | 00 | MBM27128-20 | 16 KB | D | per | Download | |
| Oak | ??? | 8-bit VGA card | '90 | ? | U14 | BIOS | 00 | [27256] | 32 KB | D | alecv | Download | Maybe version Dv2.15-35 due to the ROM content of "VGA BIOS Dv2.15-35". |
| Oak | VGA-KO77 | 16-bit VGA card | '92 | V1.06 | U23 | BIOS | 00 | [27256] | 32 KB | D | prime | Download | Contains "OAK TECHNOLOGY, INC., VGA BIOS V1.06 (SWLS)". |
| Octek | ??? | 16-bit VGA card | '89 | ? | ? ? |
BIOS BIOS |
551800 553300 |
[27256] [27256] |
32 KB 32 KB |
D D |
prime prime |
Download Download |
High ROM. PCB is labelled "BIOS HIGH". Low ROM. PCB is labelled "BIOS LOW". |
| Octek | ??? | 16-bit VGA card | '90 | ? | ? ? |
BIOS BIOS |
553800 55CC00 |
[27256] [27256] |
32 KB 32 KB |
D D |
prime prime |
Download Download |
High ROM. PCB is labelled "BIOS HIGH". Low ROM. PCB is labelled "BIOS LOW". |
| Olivetti | M15 Plus | Desktop computer | '88 | 1.10 | ? | BIOS | 595AA6 | [27C256] | 32 KB | D | AndrewNi | Download | Contains "06/03/88" and "1.10 Copyright (c) Hitachi, Ltd. 1985" |
| Olivetti | M24 | Desktop computer | '84 | 1.43 | 6F 6H |
BIOS BIOS |
95 6B |
[2764] [2764] |
8 KB 8 KB |
C C |
Thrashbarg Thrashbarg |
Download Download |
High ROM Low ROM |
| Olivetti | M240 | Desktop computer | '87 | 2.04 | ? ? |
BIOS BIOS |
F0 10 |
[27128] [27128] |
16 KB 16 KB |
? ? |
macekmacek macekmacek |
Download Download |
High ROM Low ROM |
| Plus | Hardcard | HDD-on-a-card | D | ? | Download | Pointer to ibm-pc.org | |||||||
| Priam | InnerSpace | 8-bit MFM controller | '85 | 1.0 | U14 | BIOS | 00 | [2732] | 4 KB | D | James191145 | Download | "704055 EC 10372 REV A 60326" on ROM sticker. See note 8. |
| Quadtel | [ ROM ] | VGA BIOS ROM | '92 | 2.13.01 | - | BIOS | 00 | [27256] | 32 KB | D | per | Download | Contains "Quadtel S3 86C801/86C805 Enhanced VGA BIOS. Version 2.13.01" See note 11. |
| Rancho | RT1000B | 8-bit SCSI card | '92 | 8.10R | U3 | BIOS | 00 | M2764A | 8 KB | ? | Cloudschatze | Download | Manual and software are here |
| Rancho | " | " | '93 | 8.20R | U3 | BIOS | 00 | [2764] | 8 KB | ? | IBM Portable PC | Download | Manual and software are here |
| Samsung | Samtron 88S | Desktop computer (XT clone) | '87 | 2.0A | ? | BIOS | 00 | TMS 27C256 | 32 KB | D | modem7 | Download | BIOS by Award / Motherboard contains on-board video, floppy controller, etc. / "701058-06" on ROM |
| Seagate | ST01 - early | 8-bit SCSI controller | 8 KB | From documentation: "Early versions of the ST01 have an 8K ROM and no auxiliary drive power connector." | |||||||||
| Seagate | ST01 - late | [ use ROM for ST02 ] | 16 KB | [ use ROM for ST02 ] | |||||||||
| Seagate | ST02 | 8-bit SCSI/floppy controller | '90 | 3.2 | ? | BIOS | DB | [27128] | 16 KB | ? | ? | Download | See note 5. |
| Seagate | " | " | '91 | 3.3 | ? | " | 00 | " | " | D | alecv | Download | |
| Seagate | " | " | '91 | 3.3.2 | ? | " | 00 | " | " | ? | ???? | Download | * Actually "SyDOS SCSI BIOS REVISION 3.3.5", based on Seagate BIOS version 3.3.2 * Quote from z80eu: "and it supports big HDDs (above 500MB) as well." |
| Seagate | ST10 | 8-bit MFM controller | '87 | 2.4 | ? | BIOS | 00 | [2764] | 8 KB | D | modem7 | Download | A string within: "ST10 BIOS v2.4". Seagate appear to have licenced the card design from DTC - click here |
| Seagate | ST11R (dual ROM) |
8-bit RLL controller | '88 '88 |
1.5 1.5 |
? ? |
1. BIOS 2. Microcode |
1719DD 0D3A24 |
[27C128] [27C64] |
16 KB 8 KB |
D D |
modem7 modem7 |
Download Download |
"ST11 BIOS V1.5 003" on ROM sticker. See note 5. "ST11R MICROCODE V1.5 003" on ROM sticker / ROM ID's itself as a 27C64 |
| Seagate | ST11R (single ROM) |
8-bit RLL controller | '88 | 1.7 | ? | BIOS | 175562 | [27128] | 16 KB | C | alecv | Download | "ST11M/11R BIOS 005 V1.7" on ROM sticker. See note 5. |
| Seagate | " | " | '88 | 2.0 | ? | BIOS | 13CAE8 | [27128] | 16 KB | C | alecv | Download | "ST11M/11R BIOS 001 V2.0" on ROM sticker. See note 5. |
| Seagate | ST21M | 16-bit MFM controller | '89 '89 |
1.3 1.7 |
? ? |
1. BIOS 2. Microcode |
135CFD 0C7A00 |
[27C128] [27C64] |
16 KB 8 KB |
D D |
modem7 modem7 |
Download Download |
"ST21/22 BIOS V1.3 003" on ROM sticker. See note 3. "ST21/22 MICROCODE V1.7 007" on ROM sticker / ROM ID's itself as a 27C64 |
| Seagate | ST22M | [ use ROMs for ST21M ] | [ use ROMs for ST21M ] | ||||||||||
| Silicon Valley Computer |
ADP-50L ( for Tandy ) |
8-bit IDE controller | '88 | 2.18T | ? | BIOS | 0EF428 | ? | 8 KB | C | Great Hierophant |
Download | This particular BIOS designed for Tandy 1000 computers. |
| Sunix | Sun-4300 | 8-bit floppy controller | ? | 02/27 | U9 | BIOS | 00 | [2764] | 8 KB | D | modem7 | Download | On ROM sticker: "Name 4300" "Version 02/27" |
| Sunix | Sun-6301 ? | 8-bit multifunction card | ? | 7/10 | U13 | BIOS | 00 | [2764] | 8 KB | D | modem7 | Download | On ROM sticker: "Name 6301" "Version 7/10" |
| Techway | Multi Drive II Plus | 8-bit floppy controller | '89 | 2.3 | ? | BIOS | 00 | [2764] | 8 KB | C | Néstor | Download | Strings within: "Techway Multi Drive II Plus 2.3" "Ver2.3" |
| Toshiba | T1000 | Laptop computer | '88 | V4.10 | IC25 | BIOS | 1ED500 | [27C256] | 32 KB | C | sanders | Download | Contains "T1000 V4.10 TOSHIBA" |
| Toshiba | T3100e | Laptop computer | '89 | 3.00 | ? | BIOS | ? | ? | MikeS | Download | Two ROMs (high and low) / Combined contents contains "T3100e V3.00" / Combined 8-bit checksum = 00 | ||
| Toshiba | T5200C | Laptop computer | '89 | 3.00 | ? | BIOS | 00 | TMS27C210-20JL | 128 KB | D | modem7 | Download | T5200C = colour version of T5200 / ROM contents contains "T5200 V3.00" / On ROM sticker is "006A" |
| Transteque | HC-100 | 8-bit MFM controller | '86 | A | U15 | BIOS | 00 | M5M2764P | 8 KB | C | modem7 | Download | A string within: "TRANSTEQUE HARD DISK CONTROLLER HC-100 REV. A" |
| Trantor | T128 | 8-bit SCSI card | '90 | 1.12 | ? | BIOS | 00 | NMC27C64N-150 | 8 KB | D | Robin4 | Download | A string within: "SCSI BIOS, Version 1.12 Copyright (C) 1989-90" |
| Trantor | T130B | 8-bit SCSI card | '92 | 2.14 | U4 | BIOS | 00 | [2764] | 8 KB | D | modem7 | Download | |
| Trident | 9000C MKII | 16-bit VGA card | '93 | C4.4 | U3 | BIOS | 00 | [27256] | 32 KB | D | modem7 | Download | First half contains EVEN bytes, second half contains ODD bytes |
| Tseng Labs | ??? | 16-bit VGA card | '90 | 1.1 | 1E/1G | BIOS | 2B3A00 | NMC27C256Q-20 | 32 KB | D | modem7 | Download | Contains "VGA-4000 BIOS V1.1" and "Tseng Laboratories, Inc." |
| Video Seven | VEGA VGA | 8-bit VGA card | '88 | 1.47 | U15 | BIOS | 00 | NMC27C256Q-250 | 32 KB | D | modem7 | Download | FCC ID: D2A62L1989V5 / On ROM sticker: "435-0016-47" / Contains "VEGA VGA BIOS Version 1.47" |
| Video Seven | VGA-16 | 16-bit VGA card | '88 | 1.09 | U16 U17 |
BIOS BIOS |
0BFA9C 2957A4 |
[27128] [27256] |
16 KB 32 KB |
D D |
modem7 modem7 |
Download Download |
"435-0030-09" on chip. Under EPROM, PCB has "16Kx8" on it. "435-0029-09" on chip. Under EPROM, PCB has "32Kx8" on it. |
| Video Seven | VGA 16E | 16-bit VGA card | '89 | 1.14 | ? ? |
BIOS BIOS |
1504B5 154F7C |
[27256] [27256] |
32 KB 32 KB |
D D |
prime prime |
Download Download |
Odd ROM Even ROM |
| VTech | Laser Turbo XT | IBM XT clone | '87 | V1.11 | U20 | BIOS | 00 | [27C64] | 8 KB | D | 3pcedev | Download | Contains "BIOS V1.11" |
| VTech | Laser XT/3 | IBM XT clone | '89 | V1.26 | ? | BIOS | 00 | NMC27C64Q | 8 KB | D | Robin4 | Download | Contains "BIOS V1.26". According to Robin4, there are two ROMs, both with identical content !!! |
| Wang | PC 250/16 | Desktop computer (AT clone) |
'91 | 03.13.00 | L46 L47 |
BIOS BIOS |
55C500 54CA00 |
S27C256-15 S27C256-15 |
32 KB 32 KB |
C C |
Krille Krille |
Download Download |
Chip labelled "9515 ROH". HI chip (ODD). [Wang BIOS 03.13.00, based on a Phoenix BIOS] Chip labelled "9514 ROL". LO chip (EVEN). |
| Wang | 3050 ? | 16-bit VGA card | '91 | 1.02.00 | L18 | BIOS | 00 | S27C256-12 | 32 KB | D | prime | Download | Contains "WVGA-16HR VGA BIOS Version 1.02.00" |
| Wave Mate | ??? | 8-bit VGA card | '89 | 1.21.00 | ? | BIOS | 00 | [27256] | 32 KB | D | prime | Download | Contains "Quadtel VGA BIOS Version 1.21.00" |
| WCT | NT-200B | 16-bit VGA card | '89 | ? | U23 U24 |
BIOS BIOS |
15CFE4 15661E |
[27128] [27128] |
16 KB 16 KB |
D D |
modem7 modem7 |
Download Download |
Low byte. Under EPROM, PCB has "27128" on it. High byte. Under EPROM, PCB has "27128" on it. |
| Western Digital | ??? | 8-bit VGA card | '88 | ? | U14 | BIOS | 00 | [27256] | 32 KB | D | prime | Download | |
| Western Digital | WD1002S-WX2 | 8-bit MFM controller | '85 | ? | U14 | BIOS | 00 | [2732] | 4 KB | D | modem7 | Download | "62-000042-11" on ROM sticker. (62-000042-011) |
| Western Digital | WD1002-27X | 8-bit RLL controller | '86 | ? | U12 | BIOS | 00 | [2764] | 8 KB | D | modem7 | Download | "62-000089-030" on ROM sticker |
| Western Digital | " | " | '88 | ? | U12 | BIOS | 00 | [2764] | 8 KB | D | SunDown79 | Download | "62-000274-032" on ROM sticker |
| Western Digital | WD1002A-27X | 8-bit RLL controller | '87 | ? | U8 | BIOS | 00 | [2764] | 8 KB | C | romanon | Download | "62-000215-060" on ROM sticker |
| Western Digital | WD1002A-FOX | 8-bit floppy controller | '87 | 1.0 | U14 | BIOS | 00 | ? | 8 KB | ? | Chuck(G) | Download | |
| Western Digital | WD1004A-27X | 8-bit RLL controller | '88 | ? | ? | BIOS | 00 | ? | 8 KB | C | romanon | Download | |
| Western Digital | WD1007V-SE1 | 16-bit ESDI controller | '89 '89 |
A5 ? |
U3 U14 |
BIOS BIOS |
00 00 |
[27128] [27128] |
16 KB 16 KB |
D | modem7 | Download Download |
"62-000318-031" on ROM sticker. A string within: "REV. A5 WD1007V" "62-000279-061" on ROM sticker. A string within: "BIOS Utilities" |
| Xebec | 1046838 | SASI bridge | ? | ? | ? | ? | 059AF3 | [2732] ? | 4 KB | ? | SomeGuy | Download | Found in an Eagle 1600 computer |
| Xebec | 1210C | 8-bit MFM controller | '83 '86 |
2.15 ? |
U2 U44 |
1. BIOS 2. ???? |
00 38 |
D2764A-2 TMS 2764JL-45 |
8 KB 8 KB |
D D |
modem7 modem7 |
Download Download |
On sticker: "Mitsubishi Electric FXD J15 2.15" On sticker: "104868C COPYRIGHT XEBEC/86" |
| Note 1 | The ROM socket is fed inversed address lines. That is why the ROM content is reversed (last byte first, first byte last) compared to how the computer sees it. |
| Note 2 | First two bytes are 55/AA indicating BIOS expansion ROM. Third byte is 20 indicating code size in the 32 KB sized ROM is 16 KB. Therefore we'd expect the 8-bit checksum of the first 16 KB to be 00. The 8-bit checksum of the first 16 KB (addresses 0000h to 3FFFh) is instead FE. Not sure what is going on here. Need to look at what is presented to the PC. |
| Note 3 | First two bytes are 55/AA indicating BIOS expansion ROM. Third byte is 1C indicating code size in the 16 KB sized ROM is 14 KB. That explains why the 8-bit checksum of the entire 16 KB is not 00. As expected, the 8-bit checksum of the first 14 KB (addresses 0000h to 37FFh) is 00. It is interesting to note that the actual code size is greater than 14 KB (take a look). |
| Note 4 | First two bytes are 55/AA indicating BIOS expansion ROM. Third byte is 0C indicating code size in the 8 KB sized ROM is 6 KB. That explains why the 8-bit checksum of the entire 8 KB is not 00. As expected, the 8-bit checksum of the first 6 KB (addresses 0000h to 17FFh) is 00. |
| Note 5 | First two bytes are 55/AA indicating BIOS expansion ROM. Third byte is 0C indicating code size in the 16 KB sized ROM is 6 KB. That explains why the 8-bit checksum of the entire 32 KB is not 00. As expected, the 8-bit checksum of the first 6 KB (addresses 0000h to 17FFh) is 00. It is interesting to note that the actual code size is greater than 6 KB (take a look). |
| Note 6 | First two bytes are 55/AA indicating BIOS expansion ROM. Third byte is 20 indicating code size in the 32 KB sized ROM is 16 KB. Therefore we'd expect the 8-bit checksum of the first 16 KB to be 00. The 8-bit checksum of the first 16 KB (addresses 0000h to 3FFFh) is instead FE. Not sure what is going on here. Need to look at what is presented to the PC. |
| Note 7 | The system board appears to be designed to take either one 4KB ROM in socket A49, or two 2KB ROMS in sockets A49/A50. There are links for that, and links to accommodate certain different types of ROM. My 912B has a single 4KB ROM in socket A49, a MM52132, which from a reading perspective, is the same as a 8332 ROM. By modification, I successfully used a TMS2532 in the A49 socket. To do that, after burning, I took pin 21 high, which can be done by either of the following: 1. Alter links W35/W36; or 2. TMS2532 modification. Photo here. |
| Note 8 | According to old adverts, Priam released variations of its 'InnerSpace' disk system (e.g. ID20, ID60-XT, ID130, ...) This Priam copyrighted ROM is from a particular variation, one where the controller is a Western Digital model WD1002S-WX2. ROM contents include "InnerSpace ID" and "ROM BIOS Version 1.0" and "Copyright PRIAM Corporation 1985". |
| Note 9 | TMC-830M: According to here, the version 7.0 BIOS from the TMC-850M will work. |
| Note 10 | TMC-860M and TMC-885M: According to here, the version 8.2 BIOS from the TMC-850M will work. |
| Note 11 | VGA BIOS ROM from a multiunction card of unknown make and model. |
| Make | Model | Function | Year | Version | Socket | Data Type | Sum | Chip Type | Size | Copy | Source | Link | Description/Comment |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hampden | MCB-1 | Trainer | ? | - | ? | Monitor | 036D0E | [27C16] | 2 KB | D | gslick | Download | Not the MCB-1A |
| TeleVideo | 912 B | VDU terminal | '80 | - - |
A3 A49 |
- - |
021324 07BF7E |
2316E MM52132 |
2 KB 4 KB |
D D |
modem7 modem7 |
Download Download |
A3: ROM type is 2316E (as printed on the PCB). I successfully used a NEC D2716D EPROM. A49: See note 7 |
